ADC ADView Modular Dianogstic Station 9000

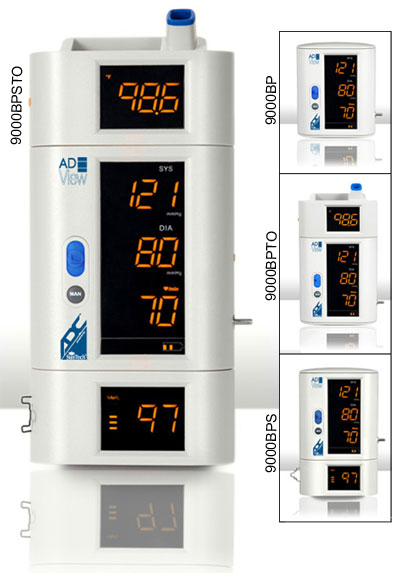

ADC9000BP ADView 9000 System Dianogstic with BP, and Rechargable Battery
ADC9000BPTO ADView 9000 System Dianogstic with BP, HR, Temperature, and Rechargable Battery
ADC9000BPS ADView 9000 System Dianogstic with BP, HR, SpO2, and Rechargable Battery
ADC9000BPSTO ADView 9000 System Dianogstic with BP, HR, Temperature, SpO2 and Rechargable Battery
ADC9000M ADView 9000 System Dianogstic with BP, HR, Temperature, SpO2 and Rechargable Battery
ADC9000M ADView 9000 Mobile Stand with 5 Legs and Storage Basket
ADC9000D ADView 9000 Desk Caddy
ADC9000TP ADView 9000 Oral Temperature Probe Covers 25/bx (20bx/cs) 500/cs

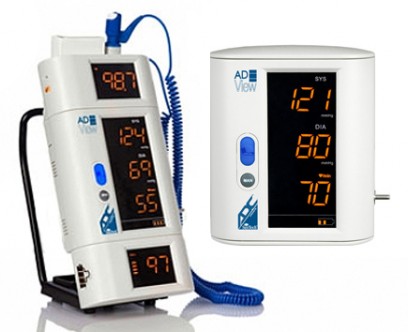

ADC, a world leader in core diagnostic products for over a quarter of a century, partnered with Suntech, the premier developer of innovative blood pressure technology to create the first truly modular diagnostic station that grows with your needs. Start with basic automated BP, then add thermometry and pulse oximetry as you need it. Choose from wall mount, table mount or mobile configurations. Or convert the unit to the platform needed as your requirements change.

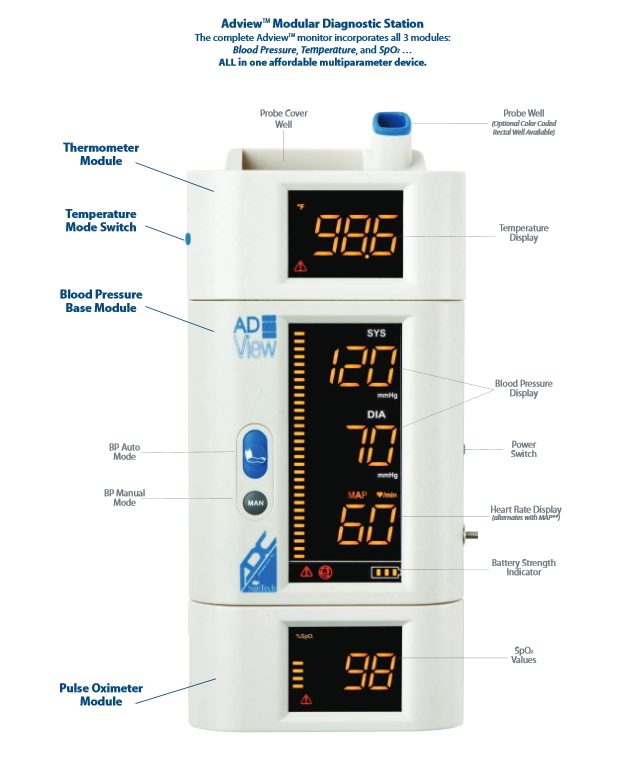

The complete Adview® diagnostic station includes:
- An automated BP monitor that measures systolic and diastolic pressure, pulse rate and MAP in about 30 seconds using the oscillometric method.
- A temperature module using Kendall’s Filac™ Fastemp™ technology that provides an oral or axillary temperature in about 10 seconds. Built-in storage well for the probe and box of 20 disposable probe covers.
- An SPO2 module that features industry leading Nellcor compatible technology for accurate readings in about 10 seconds.
- Optional EMR (electronic medical records) with BLUETOOTH® connectivity for wireless integration to your computer system.
Unlike EVERY other monitor on the market, the Adview® is completely modular. You can purchase the Adview® configured as you want from the factory OR upgrade the unit in the field at any time. No tools needed. With connect-and-go capability, adding optional temperature and pulse oximetry modules is effortless.
Start With Blood Pressure
Designed with the idea that no two patients are alike, the ADC Adview® Diagnostic Station continues the innovation first developed for the e-sphyg 2 by offering a manual measurement mode. By combining the best of our nearly half century years of blood pressure measurement experience with the capability to apply traditional methods of blood pressure measurement, the ADC Adview® provides the most reliable and versatile means of capturing blood pressure data.
Easily capture automated blood pressure measurements at the touch of a button or choose to measure with your stethoscope by using the manual feature for your patients with arrhythmias or other complex needs. We recognize that all patients are different. Now, everything you need for accurate blood pressure is in one intuitive device. With 5 cuff sizes, ranging from child to thigh, the ADC Adview™ caters to all of your patients.*
* The ADC Adview® is intended for patients ages 3 and up.
What’s Included:
- Adult & Large Adult All Purpose Cuffs
- 8′ Blood pressure hose
- Mains/Power Supply
- Mains/Power Cable
- Resource CD
- Quick Start Guide
- Reference Card

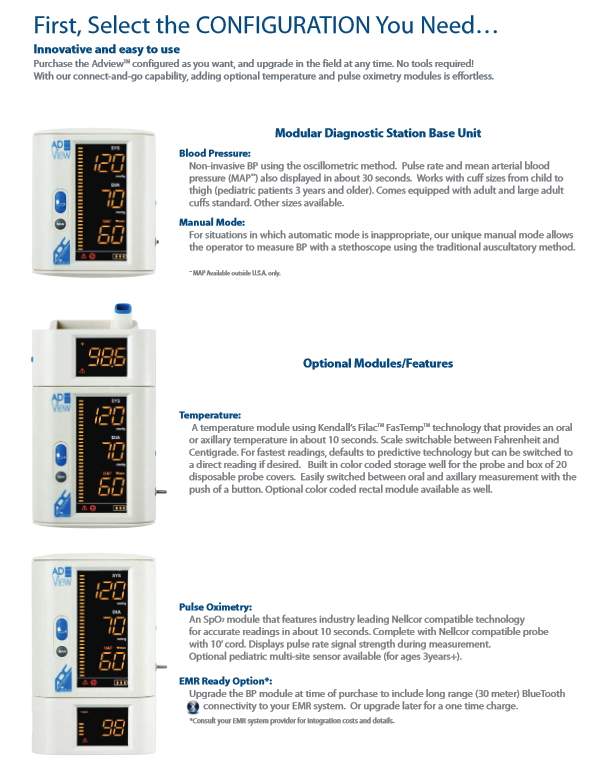

Module Options
Purchase the ADC Adview® configured as you want from the factory or upgrade in the field at any time. With connect-and-go capability, adding optional temperature and pulse oximetry modules is effortless. No tools required! Upgrade with confidence. The ADC Adview® puts all of your vital signs needs into one optimized diagnostic station whenever you need it.
Automated Temperature Readings
With connect-and-go capability, adding temperature is effortless. The temperature module allows both oral/axillary and rectal readings with corresponding color-coded probe wells for storage.
Simply remove the plastic end-cap on the top of your ADC Adview® BP module and slide the temperature module until it snaps into place. The temperature module is ready to use instantly.
What’s included:

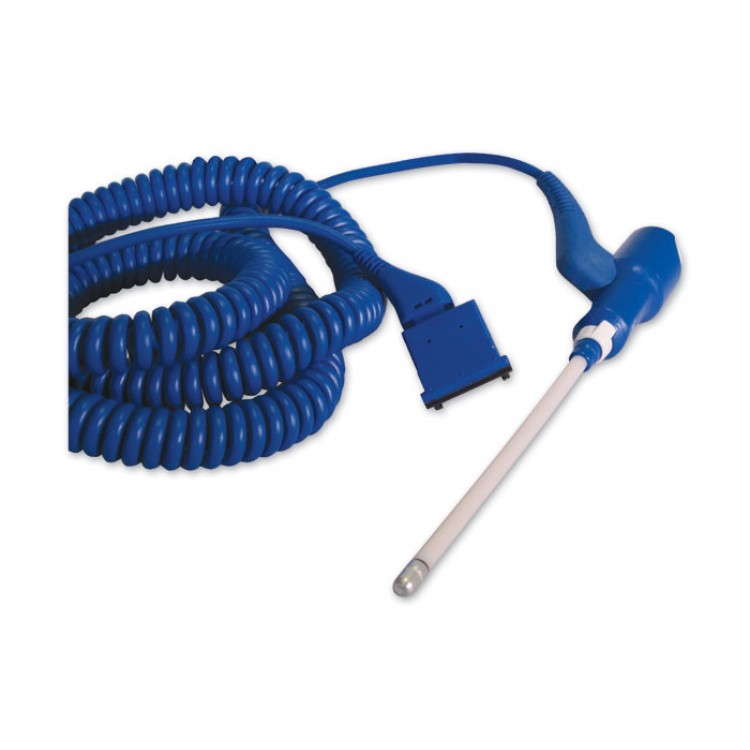

- Oral/Axillary probe (blue)
- 1 box of Filac™ Fastemp™ probe covers
- Other accessories
SpO2 Readings in an Instant
Our SpO2 add-on module includes industry-leading Nellcor® compatible technology for easy-to-integrate pulse oximetry measurement. The ADC Adview® SpO2 module comes with a reusable finger clip sensor.
Simply remove the plastic end-cap on the bottom of your ADC Adview® BP module and slide the SpO2 module until it snaps into place. The SpO2 module is ready to use instantly.
What’s included:

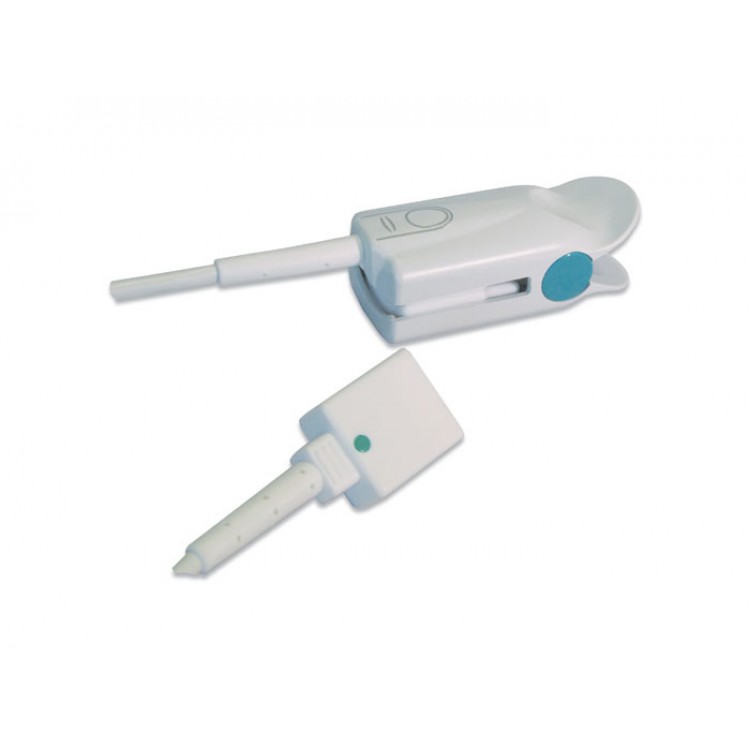

- Reusable Adult Finger Sensor
- Single 10′ Cable
- Other accessories

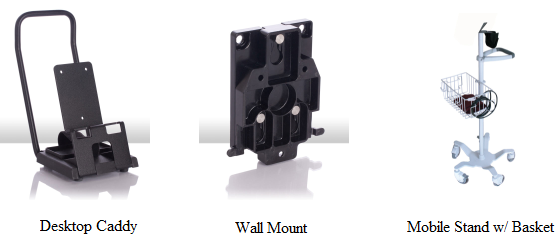

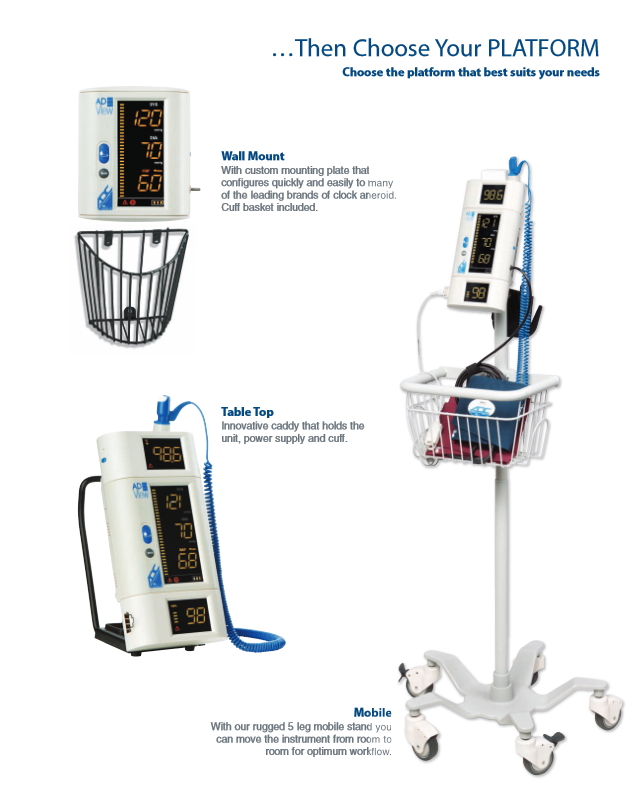

Mounting Options
Choose from three “platforms” for the mount that best suits your needs. Or convert from one platform to another as your requirements change.
Wall Mount
Replaces Manual Aneroid or Mercurial BP Instruments:
Intuitive design coupled with reliable, validated performance makes the ADC Adview® BP module an appealing replacement for wall mounted mechanical sphygmomanometers.

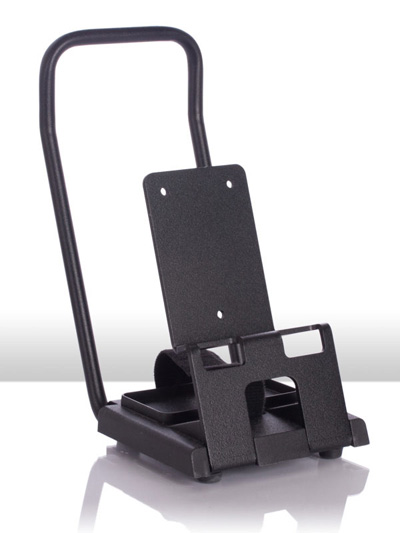

Table Stand
Replaces Mercury Sphygs:
The desktop caddy configuration replaces traditional mercury units at an affordable price. Conveniently carry from room to room. You can add additional parameters such as temperature and SpO2 whenever needed.

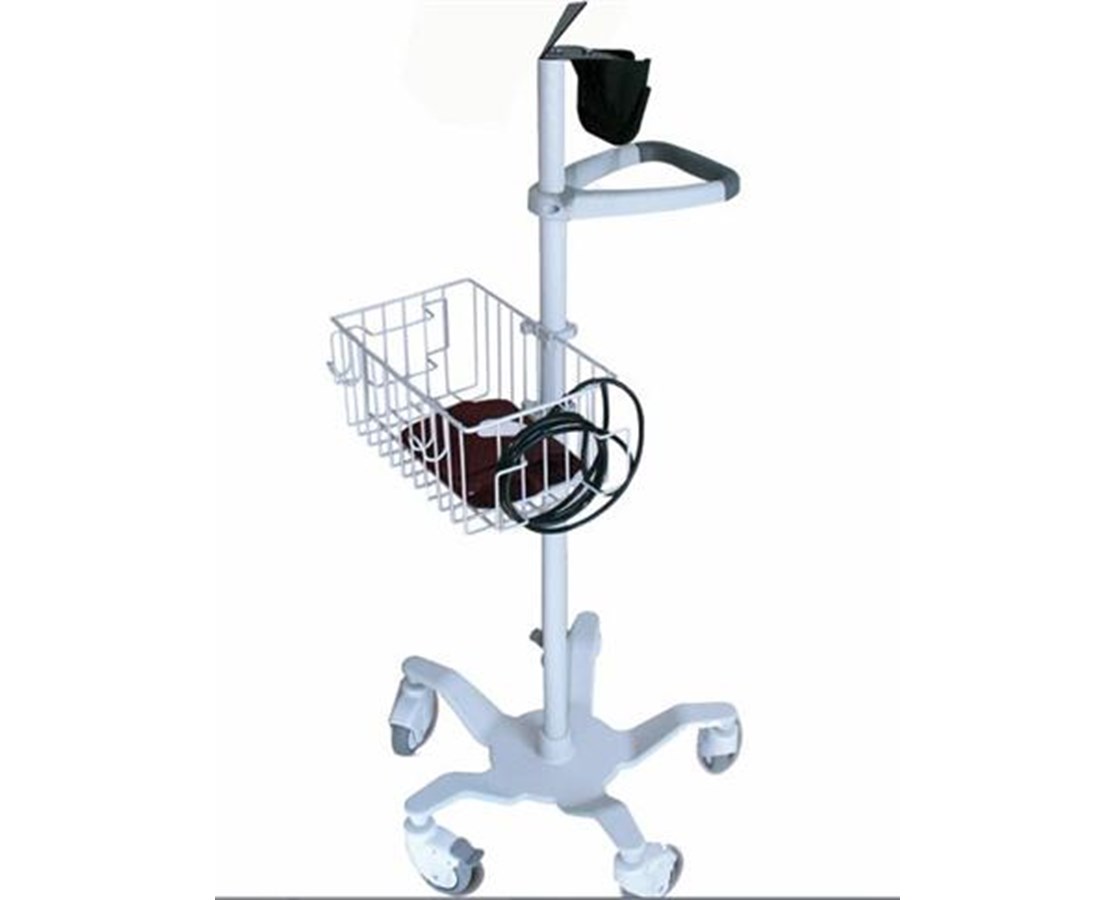

Mobile Stand
Room to Room Portability:
Achieve maximum versatility when you use the mobile stand configuration. With the rechargeable battery pack you can transport the device from room to room for optimum workflow. Our mobile stand comes with an oversized basket for accessories and a quick reference card.
The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by American Diagnostic Corporation is under license. Other trademarks and trade names are those of their respective owners.
| Patient population | Adult and pediatric patients (age 3 and above). |
| Method of measurement | Oscillometric |
| Initial inflation pressure | 160mmHg +/- 20mmHg |
| Blood pressure range (mmHg) | 60 < Systolic BP < 270, 30 < Diastolic BP < 170 |
| Blood pressure accuracy | Measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method, within the limits prescribed by the American National Standard, Electronic or automated sphygmomanometers. |
| Blood pressure determination time | 35-40 seconds typical for Adult cuff |
| Heart rate range | 30-200 bpm +/- 2% or +/- 3 bpm, whichever is greater |
| Temperature range | 86°F (30.0°C) – 109.4°F (43.0°C) |
| Temperature accuracy | +/- 0.2°F (+/-0.1°C) |
| Functional oxygen saturation range | 40-100% |
| Functional oxygen saturation accuracy | 70-100% +/- 2 digits (Note: because pulse oximeter equipment measurements are statistically distributed, only about two-thirds of pulse oximeter equipment measurements can be expected to fall within ± 2 digits of the value measured by a CO-oximeter.) |
| Operating conditions | 10°C (50°F) to 40°C (104°F) Less than 90% RH |
| Storage conditions | -20°C (-4°F) to 55°C (131°F) Less than 90% RH |
| Power | External power supply for non-battery version: Globtek model: GTM21089-1506-T3 (SunTech part number: 19-0013-00) External power supply for Battery version, rechargeable by Globtek model: GTM21089-1509-T3 (SunTech part number 19-0014-00) |
| Calibration | Check once per year for BP and Temperature |
| Safety systems | Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 330 mmHg. Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds. |
| Dimensions | Length = 5.5 inches, Height = 11.5 inches, Width = 3.8 inches; Length =14.0 cm, Height = 29.2 cm, Width = 9.7 cm |
| Standards | UL60601-1, CAN/CSA C22.2 601-1 IEC 60601-1, IEC 60601-1-2 (EMC), IEC 60601-1-4, ISO 9919, AAMI SP10:2002, ASTM E 1112, EN 12470-3 Meets “Non-invasive Sphygmomanometers — General Requirements & Supplementary Requirements for Electro-Mechanical BP Measuring Systems”, EN 1060-1, EN 1060-3 |
| Classification | Protection against electric shock: Class II (for non-battery version), Internally Powered Equipment (for battery version); Applied parts: Type BF; Mode of operation: Continuous |
